Graph Tech

Please click the link below to download and print the file:<div class="fr-deletable gorgias-file-attachment__wrapper" contenteditable="false"><div>attach_file <a class="gorgias-file-attachment__anchor-name" href="https://attachments.gorgias.help/qgaXzxadBM7vDWOp/hc/g5KDM28ZApx9aByw/2025101617-58cb145f-9c14-466c-8c9c-34829c7b9022-graph_tech_quick-sizing-guide_oct_2022_update.pdf" target="_blank" rel="noopener noreferrer">Graph_Tech_Quick-Sizing-Guide_Oct_2022_update.pdf</a> 485.8KB</div>close</div><img src="https://attachments.gorgias.help/qgaXzxadBM7vDWOp/hc/g5KDM28ZApx9aByw/2025101617-036bbec6-9fa3-4759-bc7c-5661265df852-graph_tech_quick-sizing-guide_oct_2022_update_page_1.jpg" style="width: 682px;" class="fr-fic fr-dib"><img src="https://attachments.gorgias.help/qgaXzxadBM7vDWOp/hc/g5KDM28ZApx9aByw/2025101617-28c8a187-c00e-48c9-b8ba-f1b3609b0493-graph_tech_quick-sizing-guide_oct_2022_update_page_2.jpg" style="width: 682px;" class="fr-fic fr-dii">

Please click the link below to download and print the file:.

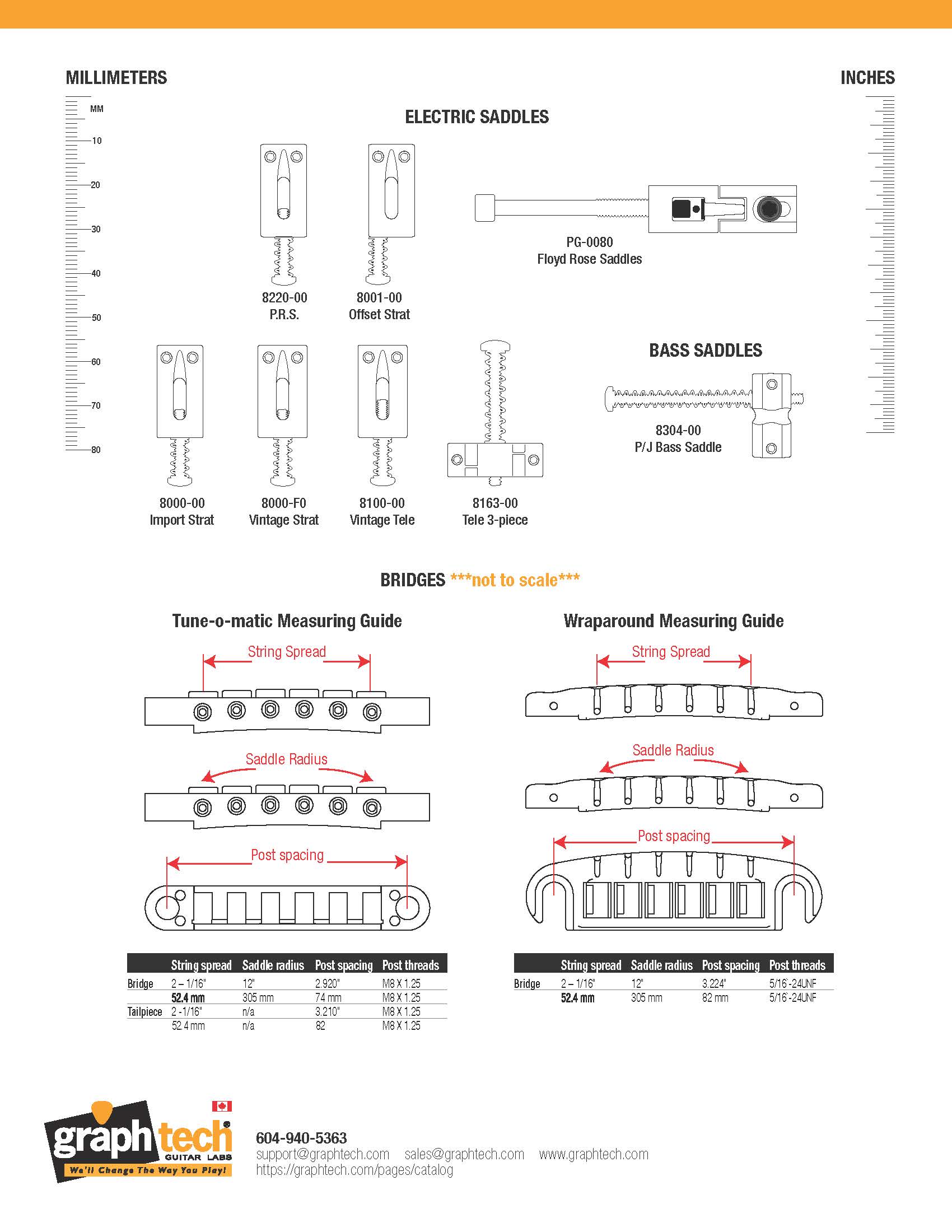

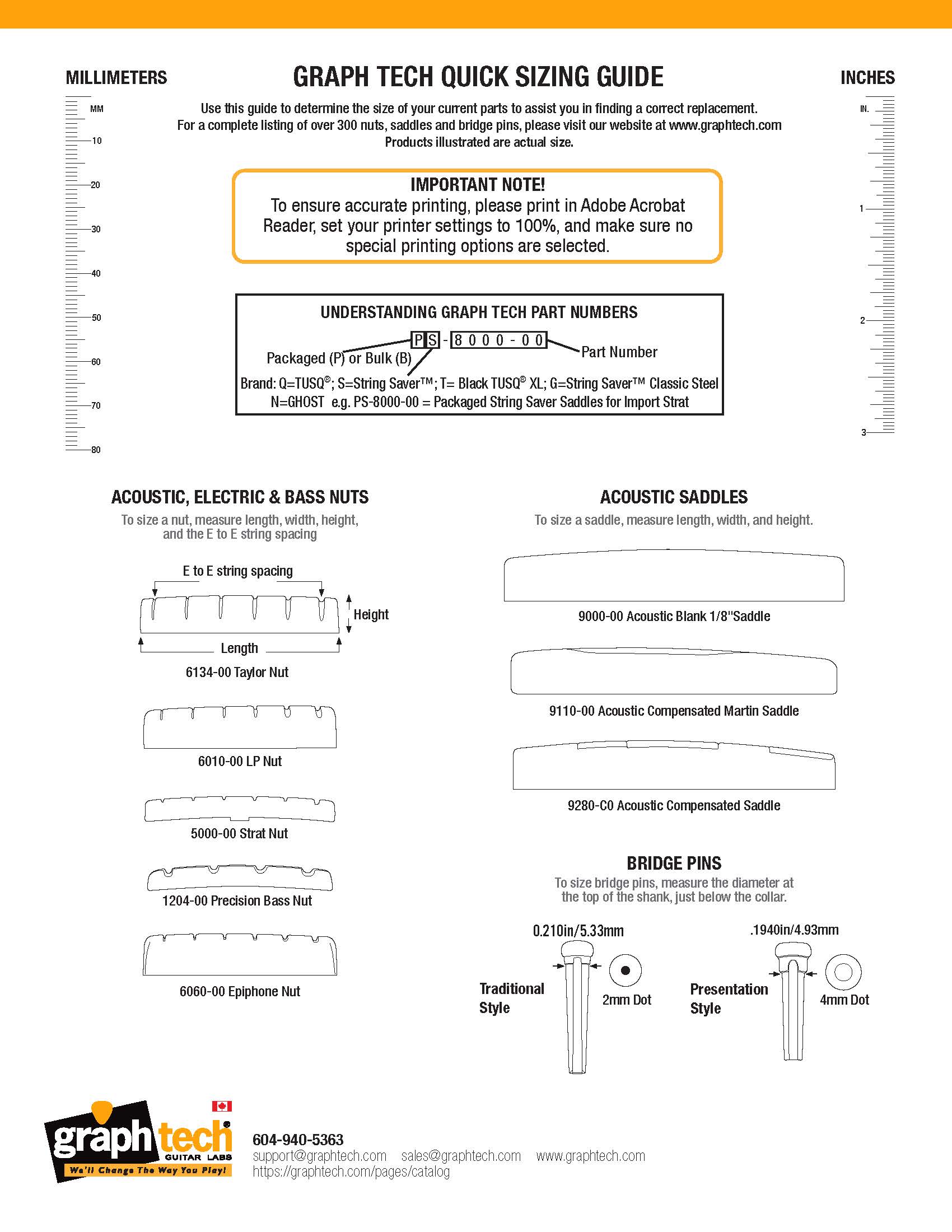

Quick Sizing Guide
